IoT Based Radon Detector

ODM for Project: 4G /WiFi /Lora Radon detection system

Model No: PRO-200

PRO200 is a intelligent Continuous Radon Monitor which designed specially for  IoT based System/Project.

* 4G Wireless System
* WiFi Wireless System
* LoRa Wireless System

Main Feature:

  • MORE ACCURATE THAN OTHER HOME MONITORS

The leading radon counting sensitivity of 30 counts per hour per pCi/L , is 15 times more counting sensitive than the minimum standard of  ANSI/AARST.

  • FAST RESULTS

Find radon result in minutes not days. Get the first radon result in 10 minutes. A highly reliable result within 60 minutes.

  • THE IoT Based Radon Detection Solution

It integrates the lates 4G/WiFi/LoRa wireless technology and a cloud platform.

  • Metal finish Design

Modern aluminum alloy body give a real "metal finish" high quality touch.

Specification:

  • Sensor Type : pulsed ion chamber.
  • First reliable data out : < 1hour.
  • Data display interval :10min update (1hour moving average) .
  • Radon Count Sensitivity :30CPH(Count Per Hour) per 1pCi/L.
  • Measurement Range :0.2 ~ 99.9 pCi/l (1~3700Bq/㎥).
  • Radon Accuracy/ Precision :< 10% at 10pCi/l (370Bq/㎥) after 10hours.
  • Connectivity: Wi-Fi/4G/LoRa.
  • Radon Alarm:Integrated audio alarm+ color led indicator.
  • Radon Level Visual indicator: 3-Color Led.
  • Power consumption : DC 12 ± 0.1V, 65mA (12V DC adapter) .
  • Operating range : 0℃ ~ 40℃, RH < 80% .
  • Size : Φ80(mm) x 140(mm) , 380g .
  • Color box :100X100X190MM,450G.
  • (All test data have been measured at 25℃ ± 2℃).

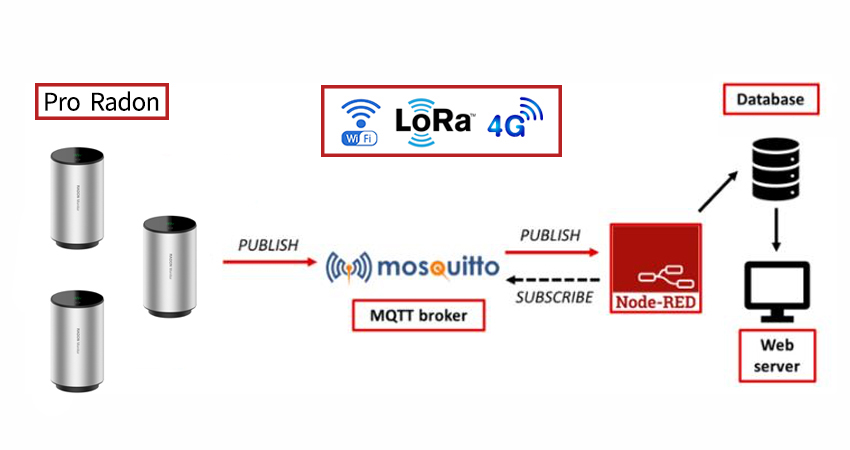

The system is mainly consisted of wireless WiFi/4G/LoRa radon sensors and a cloud platform. The sensors feature simple installation without complex wiring compared with the tradition method. The cloud platform can show the data in real time, the staff can monitor it at any time,anywhere.
