Vision Plus

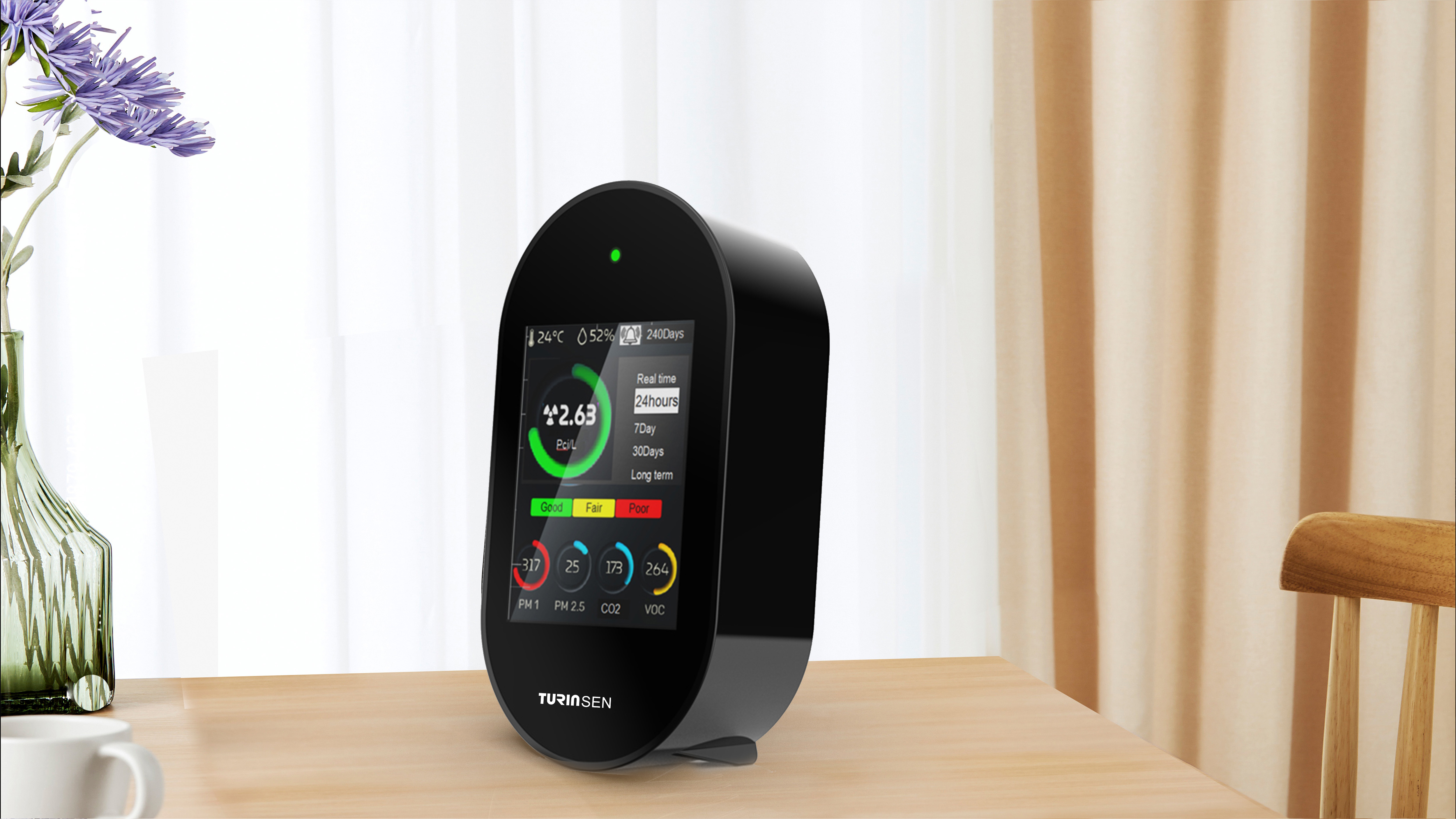

Our most comprehensive radon & air quality monitor with 7 sensors, including Radon, PM 2.5, PM1.0, CO2, TVOC and temperature& humidity — WiFi connected and cable-free.

Model No: Vision Plus

Our most comprehensive indoor air quality monitor(7 IN 1)
Vision Plus is WiFi-connected for anytime access to live readings and timely air quality notifications. It integrates an a full-size LCD  display and monitors 7 aspects of air quality.
It integrates the latest radon sensor technology that provides the first radon result in minutes, not days.
In addition,it measure PM 2.5, PM1.0, CO2, TVOC and temperature& humidity.

* CE/ FCC Certified
* FCC ID Listed Device

MAIN FEATURE

  • SIMPLE USER INTERFACE
    The tool has a simple user interface, which makes it useful for both experts and households.

  • REAL-TIME COLOR LCD DISPLAY
    The real-time data display allows users to monitor atmospheric quality and respond quickly to changes.
  •  INTEGRATES THE LATEST RADON SENSOR TECHNOLOGY
    The leading radon counting sensitivity of 20 counts per hour per pCi/L , is 10 times more counting sensitive than the minimum standard of  ANSI/AARST.
  • FAST RESULTS
    Find radon result in minutes not days. Get the first radon result in 10 minutes. A highly reliable result within 60 minutes.

  • EASY-TO-USE

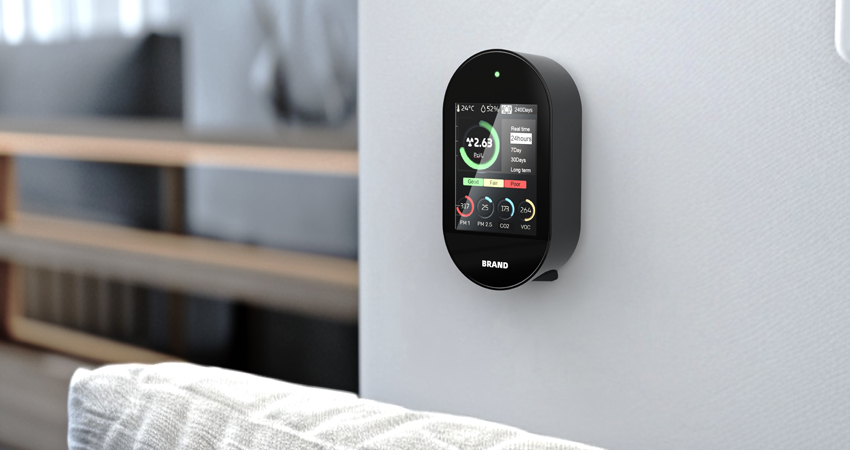

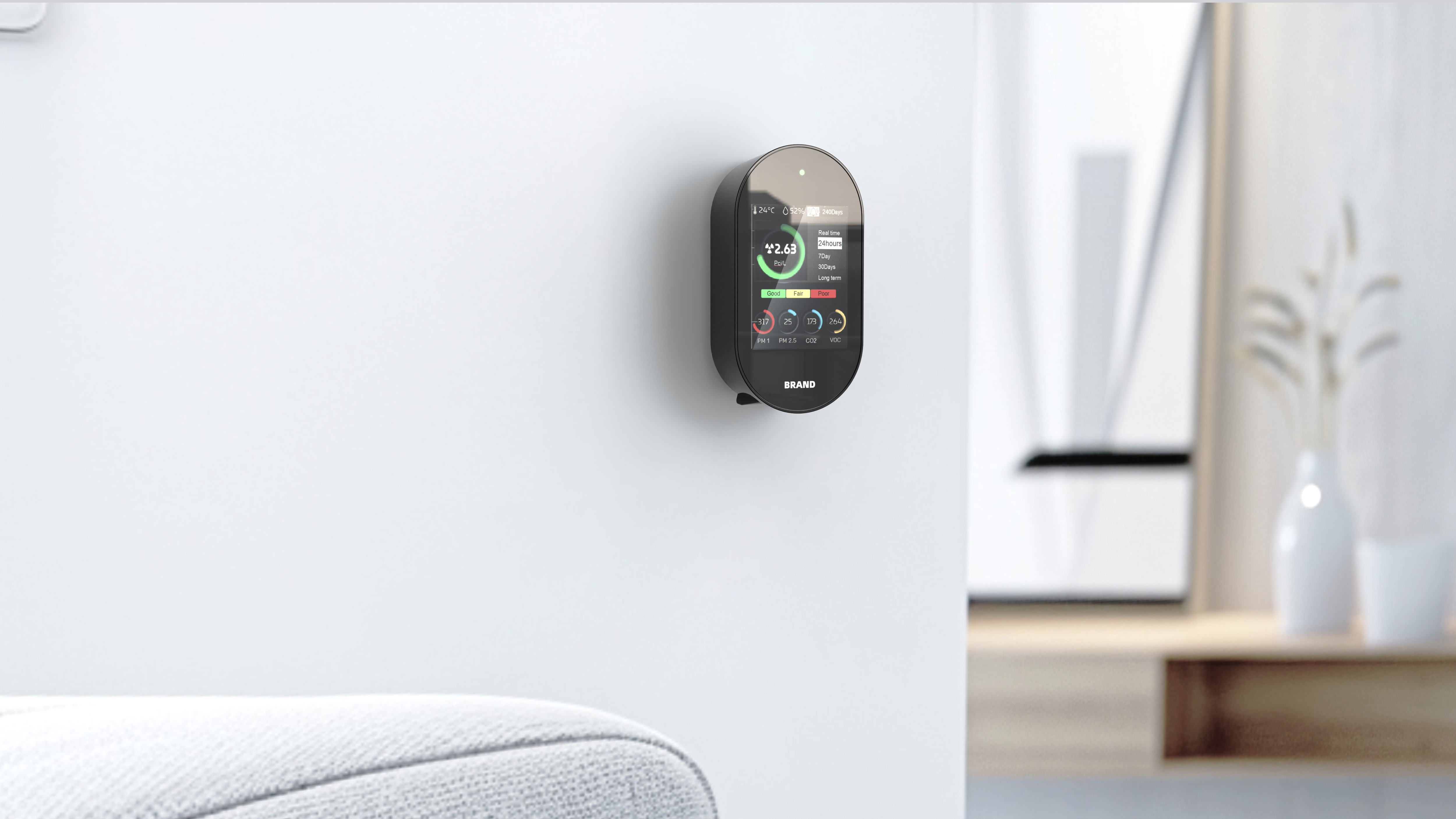

    The compact unit has a streamlined design that fits seamlessly into any space. It includes a wall-mountable back for easy installation.
  • MODERN DESIGN
    Its durable construction and modern aesthetics make it a perfect addition to any living or working space.

GENERAL SPECIFICATION

  • Power Interface : USB TYPE-C 5V/1A
  • Screen: IPS LCD 24inches
  • Optional Connectivity:  Wi-Fi (It can work alone without WiFi)
  • Overall dimensions: 125*65*45mm
  • Weight: 300g
  • Operating range : 0℃ ~ 40℃, RH < 80%

This indoor air quality monitor is designed for both residential and commercial use, providing accurate and reliable data to help ensure a safe and healthy environment.


SENSOR SPECIFICATION:

RADON SENSOR

  • Sensor Type : pulsed ion chamber
  • First reliable data out : < 1hour
  • Data display interval :  10min update (1hour moving average) .
  • Radon Count Sensitivity :  20CPH(Count Per Hour) per 1pCi/L.
  • Measurement Range :  0.2 ~ 99.9 pCi/l (1~3700Bq/㎥).
  • Radon Accuracy/ Precision :  < 10% at 10pCi/l (370Bq/㎥) after 10hours.

TEMPERATURE / HUMIDITY

  • Technology: solid state sensor.
  • Temperature Accuracy: ±0.5 °C / ±1 °F.
  • Humidity Accuracy: ±3 %RH.

PARTICULATE MATTER

  • Technology: laser scattering based opticalparticle counter.
  • Particle size detection range:300 nm to 10 μm.
  • Measurement Range (PM2.5):0 ~ 500 μg/m³.
  • Measurement Accuracy (PM2.5): below 150 μg/m³: ± (5 μg/m³ + 15%), above 150 μg/m³: ± (5 μg/m³ + 20%.

VOC

  • Technology: Metal-oxide based gas sensor,
  • Measurement range: 0 - 10,000 ppb.

CO2

  • Technology: NDIR Sensor (Non-Dispersive Infra-Red).
  • Measurement range: 400 – 5000 ppm.
  • Accuracy: ±50 ppm ±3 %RH within 10 – 35 °C / 50 - 95 °F and 0 – 80%RH.
